Chain Link Fence — Materials Estimate

Black PVC-coated · 250 linear ft · 48" tall · two 4 ft walk gates · bottom tension wire

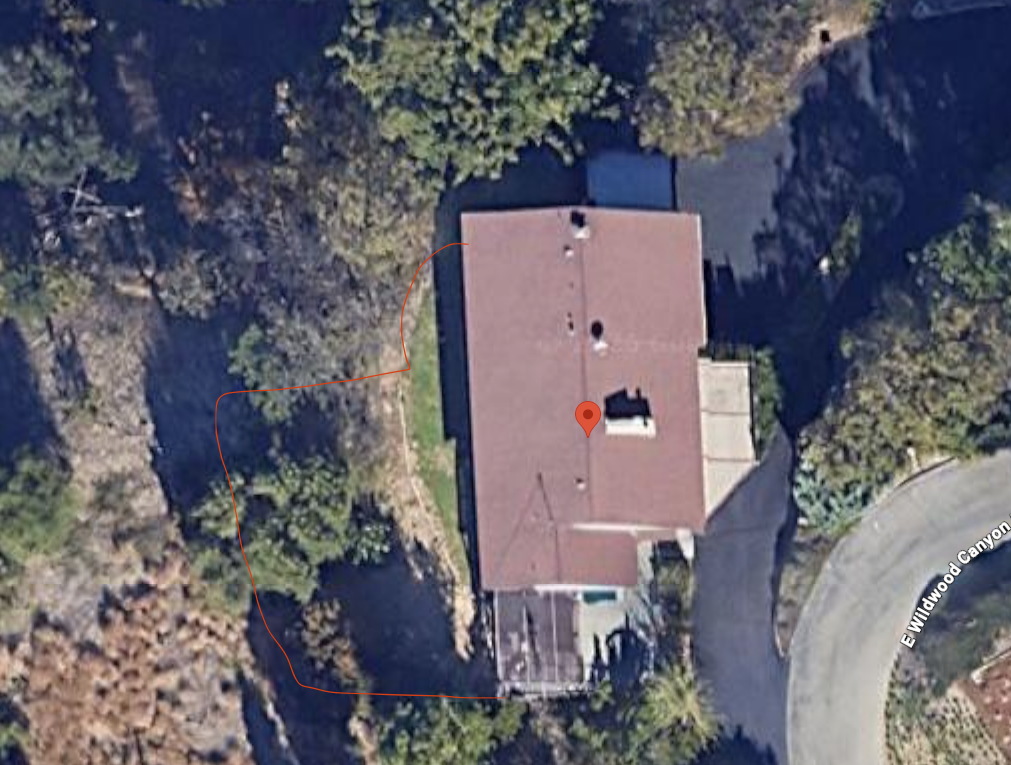

Aerial view of the property with the planned chain-link fence run marked in orange, forming a U along the west side, across the rear, and along the south edge. — Approximate planned fence run (orange) — ~250 ft, U-shaped along the west, rear, and south property lines · E Wildwood Canyon.
*Hand-drawn overlay — not to scale, not a surveyed boundary. Actual routing and measurements will vary.*

Total Length250 ft

Height48 in (4 ft)

LayoutU-shape / 3-sided (2 corners)

Gates2 × 4 ft walk gates

Fabric9-ga, black coated

Line posts1⅝" · every 10 ft

Top rail1⅞"

Bottom9-ga tension wire

Photo	Part	Spec / Model #	Unit Price	Qty	Subtotal
	Chain-link fabric 48"×50 ft, 9-ga black	50 ft roll 308864EB	$163.00	5	$815.00
	Line posts 1⅝" × 6 ft, black	each (6+ price) 328971BKEB	$26.07	18	$469.26
	Terminal / corner / gate posts 2⅞" × 6 ft, black	each 328992BKEB	$32.97	8	$263.76
	Top rail 1⅞" × 10'6", black	each 328901BKEB	$42.88	24	$1,029.12
	Bottom tension wire 170 ft, 9-ga, black	roll 328787BKEB	$32.19	2	$64.38
	Loop / eye-top caps 1⅝"/1⅞" line posts, black	each 328556BKEB	$2.97	18	$53.46
	Dome post caps 2⅞" terminal posts, black	each 328558BKEB	$4.97	8	$39.76
	Tension bands 2⅞" post, black	each 328524BKEB	$2.97	30	$89.10
	Brace bands 2⅞" post, black	each 328528BKEB	$2.97	20	$59.40
	Tension / stretcher bars ⅝" × 48" flat bar, black	each 328512BKEB	$5.98	10	$59.80
	Rail ends (cups) 1⅞", black	each 328550BKEB	$3.69	20	$73.80
	Rail sleeves / couplers 1⅞", black	each 328592BKEB	$4.97	10	$49.70
	Fabric tie hooks black, 100 / bag	bag 328557BKEB	$24.97	3	$74.91
	Hog rings fabric → tension wire, 140 / bag	bag 328603BKEB	$14.97	1	$14.97
	Walk gates 42" × 48", black	each 329204BKEB	$206.00	2	$412.00
	Gate hardware sets hinges + fork latch, black	set 328536BKEB	$42.97	2	$85.94
	Fast-set concrete Quikrete 50 lb	bag 100450	$7.97	34	$270.98
Subtotal (materials)					$3,925.34
Estimated sales tax — Glendora, CA (10.75%)					$421.97
Estimated Total (materials + tax)					$4,347.31

Notes & assumptions

Prices are best-effort, not fully verified. Home Depot's site blocks automated price reads (every fetch returned HTTP 403 across direct requests and multiple proxies), so most figures come from search snippets and may be stale. Only the hog rings ($14.97) was confirmed directly on the page. Treat all prices as approximate and confirm at checkout — the figures most worth double-checking are the high-value items (fabric, top rail, walk gates, gate hardware) and the tension wire, which sources disagreed on ($8.88–$51.97).
Bottom = tension wire. Fabric is hog-ringed to a taut 9-ga bottom wire instead of a bottom rail. This saved roughly $1,000 vs. a full bottom rail. For your dog: pull the wire tight and set the fabric close to grade; adding ground stakes every ~4 ft between posts further discourages pushing under.
Gate width. Home Depot's black walk gate is a 42" leaf (fills a ~4 ft opening with its post). Hardware is not included — the 2 hardware sets cover it.
The aerial overlay is approximate. The orange line is a hand-drawn sketch of the intended route — it is not to scale, not a property survey, and not an exact measurement. Verify the real boundary and run length on-site before ordering.
Quantities are estimated from a U-shaped layout with even 10-ft post spacing: 18 line posts, 8 terminal/corner/gate posts (2 ends + 2 corners + 4 gate). Share the three side lengths and I can tighten post/rail/wire counts.
Hardware counts (tension/brace bands, bars, rail ends) are typical allowances and slightly padded so you don't make a second trip.
Sales tax shown is the Glendora, CA combined rate of 10.75% (2026: 6% state + 0.25% county + 1% city + 3.5% district). Applied to the full materials subtotal.
Product photos are representative images of each Everbilt part (some sourced from retailer mirrors) and may differ slightly from the exact SKU.
Total excludes delivery and tools (post-hole digger, fence stretcher, come-along, etc.). Confirm everything at checkout for your ZIP.

Generated 2026-06-26 · prices best-effort from homedepot.com (Everbilt) · estimate only, verify before purchase
